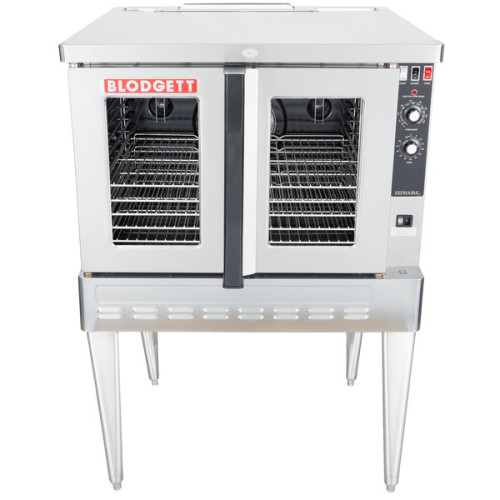

Blodgett ZEPH-100-G SGL Zephaire Convection Oven, Single Deck, Full-Size, Standard Depth, with Stand, Natural Gas, 50k Total BTU/Hr, 115v/60/1-ph, 6amps, 1/2hp, ETL Listed

Blodgett ZEPH-100-G SGL Zephaire Convection Oven, Single Deck, Full-Size, Standard Depth, with Stand, Natural Gas, 50k Total BTU/Hr, 115v/60/1-ph, 6amps, 1/2hp, ETL Listed

SINGLE FULLSIZE STANDARD DEPTH CONVECTION OVEN Model No: ZEPH-100-G SGL

From the Manufacturer

Standard depth baking compartment - accepts five 18” x 26” standard full-size baking pans in left-to-right positions All data is shown per oven section, unless otherwise indicated. Refer to operator manual specification chart for listed model names.

EXTERIOR CONSTRUCTION

• Full angle iron frame
• Stainless steel front, top, sides and legs
• Dual pane thermal glass windows encased in stainless steel door frames
• Powder coated door handle with simultaneous door operation
• Triple-mounted pressure lock door design with turnbuckle assembly
• Removable front control panel
• Solid mineral fiber insulation at top, back, sides and bottom

INTERIOR CONSTRUCTION

• Double-sided porcelainized baking compartment liner (14 gauge)
• Aluminized steel combustion chamber
• Dual inlet blower wheel
• Five chrome-plated racks, eleven rack positions with a minimum of 1-5/8” (41mm) spacing

OPERATION

• Dual Flow Gas system combines direct and indirect heat
• Electronic spark ignition control system
• Removable dual tube burners
• Pressure regulator and manual gas service cut-off valve located in front control area
• Air mixers with adjustable air shutters
• Solid state thermostat with temperature control range of 200°F (93°C) to 500°F (260°C)
• Two speed fan motor
• 1/2 horsepower blower motor with automatic thermal overload protection
• Control area cooling fan
• Interior oven lights

STANDARD FEATURES

• SSI-M - solid state infinite control with separate dials for thermostat and timer
• 25” (635mm) adjustable stainless steel legs (for single units)
• 6” (152mm) adjustable stainless steel legs (for double sections)
• Draft diverter or draft hood for venting (select one)
• Porcelainized oven liner
• (60)Minute(s) Manual Timer
• Natural Gas, 50k Total BTU/Hr
• 115v/60/1-ph, 6amps
• Two year parts and two year labor oven warranty*
• Three year limited oven door warranty*
• NSF, ETL Listed

OPTIONS AND ACCESSORIES (AT ADDITIONAL CHARGE)

• 6” (152mm) casters
• 4” (107mm) low profile casters
• 25” (635mm) stainless steel stand w/rack guides
• 29” (737mm) stainless steel, fully welded open stand with pan supports

Gas hose with quick disconnect and restraining device

• 48” (1219mm) hose
• 36” (914mm) hose
• Extra oven racks
• SSD - solid state digital control with LED display,
• Cook & Hold and Pulse Plus®
• Gas manifold (for double sections)
• Stainless steel solid back panel
• Extended labor warranty

Sold by 1 each (Picture shown casters are optional with additional costs)

For all international markets, contact your local distributor.

NOTE: The company reserves the right to make substitutions of components without prior notice

  WARNING: Attention California Residents - Prop 65 Warning www.P65Warnings.ca.gov
