SINGLE RACK VENTLESS DISHWASHER Model No: 180-VL TALL

From The Manufacturer

The 180-VL Tall comes with a Safe-T-Temp feature that assures a 180 degree final rinse and locks the machine into the wash cycle until the booster heater thermostat has been satisfied. The Ventless process eliminates the installation cost of a hood/fan, annual operational cost of the hood/fan, and hood ventilation system cost. Water entering the booster heater has been pre-heated, reducing the energy cost to bring booster temperature to required 120 degrees, potentially saving THOUSANDS of $ in operation costs. The CMA-180-Ventless Tall is provided with “Door Safety Interlock”, to prevent operator from interrupting the ventless process that removes vapor from the machine. The 180-VL Tall features a 28” dish clearance.

KEY FEATURES:

• Replaces need for independent vent hood.
• Final Rinse Valve receives cold water (41-65°F) that is processed through a "Heat Recovery System" providing nearly cost-free heating capabilities for water supplied to the Booster Heater, which reduces the heat recovery time for the Booster Heater.
• Heat recovery system captures water vapor from the wash & rinse cycle, and condenses it to heat the incoming cold water & evacuate the steam from the wash chamber.
• Door-actuated start.
• Safe-T-Temp feature assures 180°F sanitizing rinse every cycle.
• 12kW electrical booster heater.
• Booster-safety thermostat. • 6kW wash tank heater.
• Low max. 0.89 US gallons of water usage per rack.
• Minimum 90-second cycle. (60 second wash/rinse & 30 second steam evacuation)
• 40 racks per hour (based on 90-second cycle).
• Fully automatic cycle for easy operation.
• Water level safety control.
• Maximum clearance for dishes is 28".
• All Stainless Steel construction.
• Wash tank screens, which filter recirculating wash water, prevent soil from entering spray arms.
• 3-door feature for straight or corner applications.
• Automatic heat exchange condenser wash-down feature.
• Rinse PRV supplied (Pressure Regulating Valve).
• Field convertible from three phase to single phase.
• Door Safety Interlock System (DSI) assures that doors remain locked throughout the entire cycle allowing the HR system to evacuate the vapor from the machine.

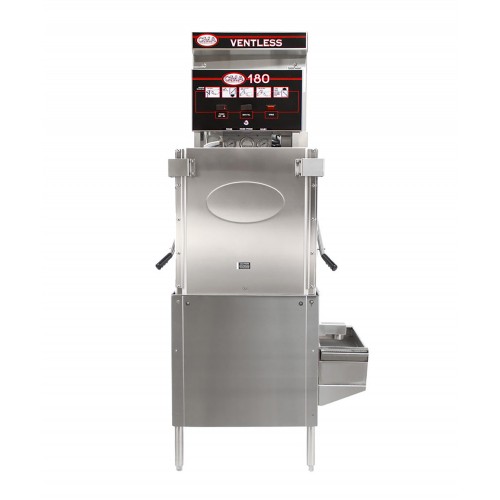

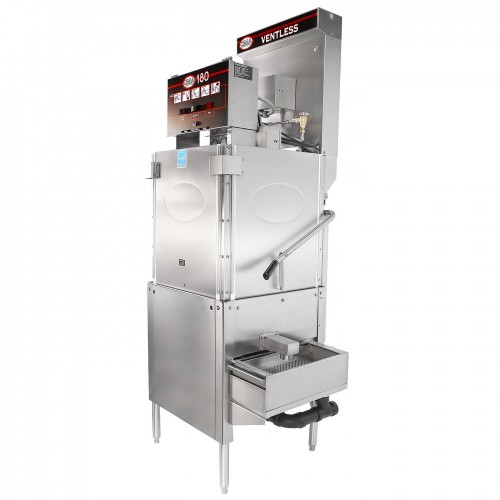

(Model may differ from images shown)
