REFRIGERATED DELI DISPLAY CASE Model No: C-DS-4
From the Manufacturer

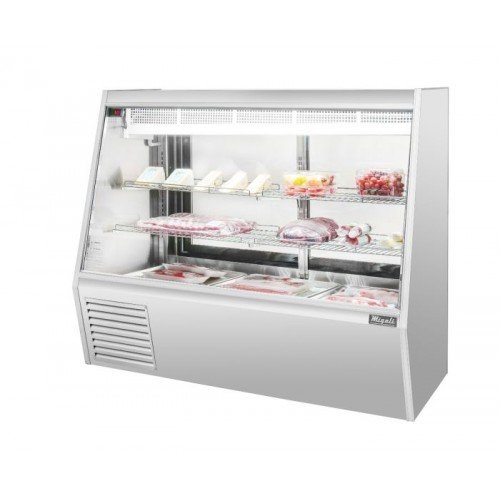

The Migali® C-DS-5 5ft straight glass double-duty refrigerated deli display case is perfect for all your meat, fish, and deli case needs. The case is designed with a gravity coil refrigerated system comprised of 3 separate evaporator coils; a gravity evaporator coil in the top display section, a second gravity evaporator coil in the bottom storage section, and a third cold wall evaporator coil foamed in the floor of the top section. This model also incorporates a digital controller and temperature read-out for greater temperature control, increased energy efficiencies and top-of-the-line performance. The C-DS-5 is equally eye catching, boasting an anodized aluminum extruded frame, all stainless-steel exterior and interior, and bright LED interior lighting. The 28.5 cu/ft interior is space-saving and comes standard with 2 adjustable shelves.
Details
• Beautiful ergonomic construction
• Digital temperature controller & temperature read-out located in the rear
• Second temperature read-out located in the front
• All stainless steel exterior and interior
• Anodized aluminum extruded frame
• Double-paned tempered Straight Display Glass
• Gravity coil refrigeration system
• 55.4” high, double-duty configuration with a gravity coil in the top display section and a gravity coil in the bottom storage section
• LED interior lighting
• Sliding glass doors in the rear to access the food products
• Side mount compressor
• Auto-defrost system
• Pre-installed casters and leveling feet
• Water drain tube located in the rear
• 23 3/4” exterior top depth
• Cantilever, chrome plated shelves
• All Natural R290 Hydrocarbon Refrigerant
• US Department of Energy Certified
• Migali® Protection Plan: 2 Year Parts & Labor Warranty, 5 Years Compressor Warranty
(Model may differ from images shown)
WARNING: Attention
California Residents - Prop 65 Warning www.P65Warnings.ca.gov
| Refrigeration | |
| Refrigeration Type : | Refrigerator |
| Capacity (Cubic Feet) : | 28.5 Cu.ft |
| Refrigerant : | R-290 |
| Door Configuration | |
| Door Style : | Slide |
| Door Type : | Glass |
| Capacity & Configuration | |
| Number of Doors : | 2 |
| Electrical | |
| Voltage : | 115 |
| Hertz : | 60 |
| Phase : | 1 |
| Horsepower : | 7/8 |
| Plug Configuration : | NEMA 5-15P |
| Certification and Origin | |
| Certifications (UL, NSF, CSA, ETL) : | ETL |
| Country of Manufacture : | China |
| Dimensions | |
| Dimensions (W x D x H) : | 60 x 33.7 x 55.4 |
| Usage | |
| Usage Types: | Deli Case |
| Configuration | |
| Style : | Single Zone |
| Front Glass : | Straight |
| Shape : | Square |
