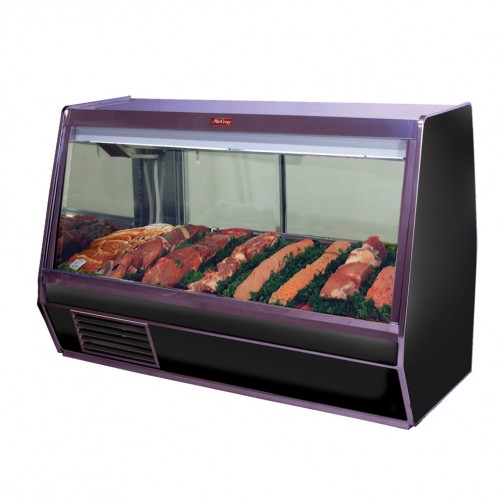

Howard-McCray SC-CMS32E-6-BE-LED 74(w) inch Red Meat Refrigerated Service Case, Straight Glass, Self-Contained, Black Exterior, 1/4hp, 12amps, 120/60/1-ph, UL Listed
RED MEAT SERVICE CASE Model No: SC-CMS32E-6-BE-LED
(CALL FOR SPECIAL PROMOTION DETAILS: 877-699-9561)
From the Manufacturer
Straight Glass Red Meat Service Case, single duty, endless design for continuous line ups, self-contained refrigeration-R513A, automatic condensate pan, temperature and defrost electronically controlled; (2) rows LED lights at top of unit, full length gravity coil system, extra humidity coil at the main deck, bright stainless steel 20" top, white interior & exterior, 1" gray boston bumper, double pane removable rear glass doors, UL listed, UL classified to ANSI/NSF7
CONSTRUCTION
- UL Classified to ANSI/NSF 7
- Foamed in place CFC free foam
- Thermal insulated front glass - 28" H
- Heavy gauge steel super structure
- Single duty display
- Endless design allows for continuous line up
- Drain is included for cleaning
INTERIOR
- White Solid ends
- White aluminum floor-main deck shelves
- Air insulated baffle (prevents moisture from dripping into display area) EXTERIOR
- Double pane rear removable doors
- Removable front grille allows for cleaning
- Removable rear grille for easy servicing
- 1" removeable end panels
- 1" Front bumper
FINISHES
- White and stainless steel front and ends
- Stainless steel mirror trim
- Stainless steel heavy gauge top - 20" W
- Rear of unit is stainless steel brush finish at top
- Bottom rear is designer white or glossy black
LIGHTING
- 2 rows of LED lighting at top of unit
ELECTRICAL REQUIREMENTS
- 115V with powercord
- UL/CUL listed
- 115V-5AMP general purpose receptacle
REFRIGERATION
- Copevap system (eliminates need for condensate pan)
- Gravity coil located at inside top of unit
- Humidity coil located at main deck (provides extra humidity)
- Self contained unit
- Automatic defrost electronically controlled (self contained units only)
- Electronically maintains constant temperatures
- Remotes available
OPTIONS
- Stainless steel, laminate, or paint
- Mirrored doors
- Extra stainless steel mezzanine shelf
- 1" Special color front bumper
- Door locks
- Pass thru front doors
- Meat platters
- Red meat bulbs
(Model may differ from images shown)
WARNING: Attention
California Residents - Prop 65 Warning www.P65Warnings.ca.gov
| Refrigeration | |
| Refrigeration Types : | Refrigerator |
| Number of Sections and Doors | |
| Casters : | None |
| Electrical | |
| Voltage : | 115 |
| Hertz : | 60 |
| Amps : | 12 |
| Phase : | 1 |
| Horse Power : | 1/4 |
| Plug Configuration : | NEMA 5-15P |
| Certification and Origin | |
| Listed : | UL |
| Origin : | USA |
| Dimensions | |
| Dimension (l"xw"xh") : | 74 x 30.5 x 49.6 |
| Usage | |
| Usage Types: | Meat Service Case |
| Configuration | |
| Style : | Straight Glass/Solid End |
| Color | |
| Exterior Color : | Black |
