DOUBLE DECKSTANDARD DEPTH CONVECTION OVEN Model No: MSD-2HE

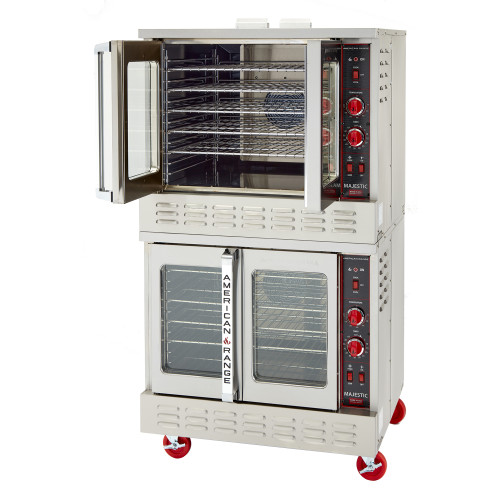

(Shown Optional Casters)
From the Manufacturer
American Range, model MSD-2HE double, standard depth convection oven with 54,000 BTU/hr., temperature range from 200°F to 500°F. A half horsepower fan offers low and high speed fan options for baking and roasting. Porcelainized oven cavity includes 12 position rack guide to accommodate five chrome racks which will hold 18" x 26" sheet pans horizontally or 12" x 20" hotel pans one per rack. The oven includes a 1 hour timer and a cool down mode. Stainless steel doors with a glass window or a solid door swing 135° for easy one handed operation.
STANDARD FEATURES
- Standard depth models 54,000 BTU/hr. total heat output per oven
- All stainless steel front, sides, and top
- 50/50 dependent double door, swings open 135º, one handed operation opens and closes both doors simultaneously
- Door options: Two glass doors (GG) Glass door, right (GL) Glass door, left (GR) Two solid doors (SS)
- Porcelainized oven interior for easy cleaning
- Five chrome racks with 12 position chrome rack guides
- Oven cavity accommodates a full size sheet pan horizontally on standard depth models
- Electronic spark igniter
- 1/2 H.P. two speed oven blower motor with
- maximum of 9 amp draw. Includes 6 foot power cord
- Oven cool switch for rapid cool down
- Burner “on” light
- 1 hour timer
- Thermostat control from 200°F to 500°F (93°C to 260°C)
WARRANTY
- Two year limited warranty, parts, and labor
OPTIONAL FEATURES
- Cooling/storage racks (5 racks with 2 support guides single oven only)
- 208/240 V motor and/or transformer
- Direct vent adapter
- Casters
(Model may differ from images shown)
