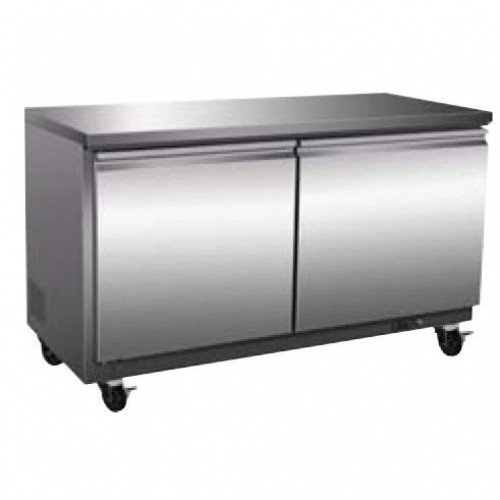

Serv-Ware UCF-48-HC-T Commercial 2-Door Undercounter Freezer Features and Uses
The Serv-Ware UCF-48-HC-T is a 48.2 inch commercial undercounter freezer designed to provide high-capacity frozen storage while maximizing valuable kitchen space. With 12 cu. ft. of storage, two solid doors, and two PVC-coated wire shelves, it provides organized access to frozen ingredients and food products in busy foodservice environments.
Built for commercial kitchens, the freezer features a stainless steel exterior, painted aluminum interior with ABS side panels, and a 304 stainless steel floor. The two-door configuration and one shelf per door help organize stored products, while self-closing doors with a stay-open feature past 90 degrees make loading and unloading more convenient.
The 1/2 HP refrigeration system uses R290 refrigerant and maintains a manufacturer-specified temperature range of -10°F to 10°F. An electronic thermostat and digital LED temperature display provide convenient temperature monitoring. Automatic defrosting every six hours and automatic condensation-water evaporation support dependable operation. The unit operates on 115V/60Hz/1-phase power at 2.4 amps and produces 3,800 BTU/H. The current Serv-Ware catalog specifies casters ship installed.
Key Features:
- 48.2 inch wide commercial undercounter freezer
- 12 cu. ft. frozen storage capacity
- Two solid refrigerated doors
- Two PVC-coated wire shelves
- One shelf per door
- Stainless steel exterior
- Painted aluminum interior with ABS side panels
- 304 stainless steel interior floor
- AISI 304 stainless steel framework construction
- 1/2 HP refrigeration system
- R290 refrigerant
- -10°F to 10°F temperature range
- Electronic thermostat
- Digital LED temperature display
- Automatic defrosting every 6 hours
- Automatic condensation-water evaporation
- CFC-free foam insulation
- Tool-free replaceable magnetic door gaskets
- Self-closing doors with stay-open feature past 90 degrees
- Casters included and shipped installed
- Two brake and two non-brake casters
- 115V/60Hz/1-phase electrical operation
- 2.4 amps
- 3,800 BTU/H
- ETL Listed
- 3-year parts and labor warranty
- 5-year compressor parts warranty
- Designed for commercial foodservice applications
Used For:
- Restaurants
- Commercial kitchens
- Bars and pubs
- Cafés and coffee shops
- Catering operations
- Delis and sandwich shops
- Quick-service restaurants
- Hotels and hospitality facilities
- Food trucks
- Frozen ingredient storage
- Frozen food storage
- Prepared food storage
- Back-of-house freezer storage
- Under-counter frozen storage
- Commercial food preparation areas
- High-volume foodservice operations
(CALL 877-699-9561 FOR SPECIAL PROMOTION)
Key Related Products:
- Commercial Undercounter Refrigerators: https://www.gochefsupply.com/commercial-under-counter-worktop-refrigeration
- Commercial Refrigeration Equipment: https://www.gochefsupply.com/commercial-refrigeration
- Restaurant Equipment: https://www.gochefsupply.com/commercial-restaurant-equipment
(Model may differ from images shown)
WARNING: Attention
California Residents - Prop 65 Warning www.P65Warnings.ca.gov
| Refrigeration | |
| Refrigeration Type : | Freezer |
| Capacity (Cubic Feet) : | 12 Cu.ft |
| Refrigerant : | R290 |
| Capacity & Configuration | |
| Number of Doors : | 2 |
| Number of Shelves : | 2 |
| Casters : | Yes |
| Electrical | |
| Voltage : | 115 |
| Horsepower : | 1/2 |
| Plug Configuration : | NEMA 5-15P |
| Certification and Origin | |
| Certifications (UL, NSF, CSA, ETL) : | ETL |
| Country of Manufacture : | China |
| Dimensions | |
| Dimensions (W x D x H) : | 48.2 x 29.9 x 35.5 |
| Usage | |
| Usage Types: | Freezer |
| Configuration | |
| Style : | Undercounter |
| Thumb | File information |
| UCF-48-HC-T-Spec.pdf File Size893.18KB Downloaded: 7 | |
| UC-Series-Warranty-Statement.pdf File Size2.27MB Downloaded: 4 |
