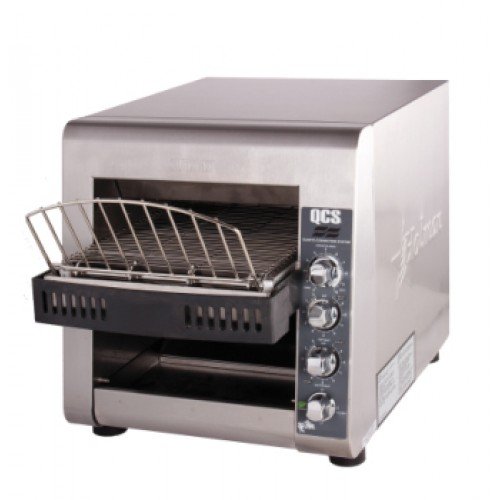

Star QCS2-500 Holman QCS® Conveyor Toaster, (500)Slices/Hr, 1-1/2 inch Opening, 1700w, 14.3amps, 208v/60/1-ph, UL Listed

Star QCS2-500 Holman QCS® Conveyor Toaster, (500)Slices/Hr, 1-1/2 inch Opening, 1700w, 14.3amps, 208v/60/1-ph, UL Listed

ELECTRIC CONVEYOR TOASTER Model No: QCS2-500

From the Manufacturer

DESCRIPTION

Star’s QCS2 series toasters can generate up to 1,200 slices per hour in only 14-1/2” of counter space (model QCS2-1200B). Analog & electronic control options. Choose from our high volume QCS2-800 in 208 or 240 volts and QCS2-500 in 120 volts. The QCS2-600H has a 3” product opening. Star’s forced convection system keeps the toaster cool- to-the-touch and extends the life of critical components. Stainless steel construction for long lasting durability. Heavy-duty motor, drive chain and conveyor speed control for superior reliability. Toast bread, bagels, English muffins and more!

SPECIFICATIONS

10” wide belt can accommodate two (2) slices of bread side-byside. Controls offer belt speed adjustment, standby mode, preset channels and intensity settings for both the top and bottom heating elements. Heavy-duty motor, drive chain and conveyor speed control for superior reliability. Conveyor belt tension system for smooth and quiet operation. High performance quartz infrared heaters for superior toasting performance and reliability. Units are easy to disassemble with one-piece cover for cleaning and service. Toasters are furnished with 1” adjustable legs and 4’ cord. NEMA 5-15P plug standard for 120V applications. 5-20P for CSA. NEMA 6-20P plug standard for 208 & 240V applications & 230V models available.

FEATURES

• Forced convection system keeps the toaster cool-to-the-touch and increases productivity by circulating pre-heated air into toasting chamber
• 10” wide belt for up to 2-slices of bread, side-by-side
• Quartz infrared heaters provide faster, more consistent heating than traditional heating elements
• Long lasting, heavy-duty metal knobs and 1” non-skid heavy-duty rubber feet
• Power saver switch that reduces electricity consumption by 75%
• Extended conveyor belt for easy loading and large warming area for higher production
• Safe load-up area with full width coated front burn guard and cool-to-the-touch exterior
• Heated holding area to keep toast at the perfect temperature
• Hi-limit switch prevents toaster from overheating protecting critical component parts
• Dimension: 14.5(w) x 22.38(d) x 15.63(h) inch
•  208v/60/1-ph
• UL Listed

ANALOG CONTROLS

• Variable speed and top/bottom heat control for perfect color and texture of bread, bagels, English muffins and more

ELECTRONIC CONTROLS

• Programmable feature to set stand-by in advance. Will automatically reduce power to set point if toaster is not in use at the programmed time
• Large LED display provides for easier reading of settings
• Easy-to-use electronic control panel allows you to adjust temperature and speed control settings for your bread products
• Pre-programmed from the factory with 4 channel settings for toast,bagels, English muffins and other. Change products on the go with the touch of a button any time during the operation

WARRANTY

• These units come with a one [1] year warranty for parts and labor.

(Model may differ from images shown)
