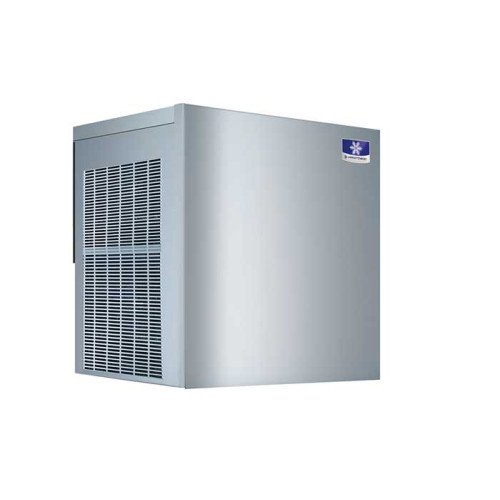

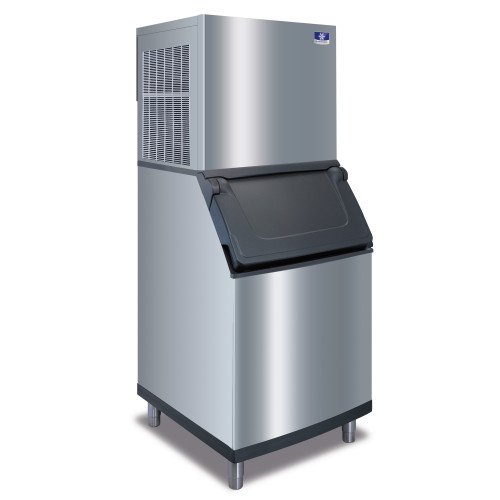

Manitowoc RFP0620A/D420 730 lb Flake Ice Maker with 383 lb Storage

22 inch Air-Cooled Modular Flake Ice Maker with D420 Storage Bin

The Manitowoc RFP0620A/D420 combines a 22 inch modular flake ice maker with a D420 storage bin for commercial operations that need high-volume flake ice production and convenient on-site storage. The air-cooled RFP0620A is rated for up to 730 lb of flake ice production per 24 hours under the listed 70°F air and 50°F water rating condition. The D420 storage bin holds 383 lb of ice and measures 22 inch W × 34 inch D × 50 inch H, while the ice maker head measures 22 inch W × 23.63 inch D × 26 inch H. Together, the configuration is approximately 22 inch W × 34 inch D × 76 inch H. The system operates on 115V, 60Hz, single-phase power and uses a 1 HP compressor, R290 refrigerant, and high-load maintenance-free stainless steel bearings. Flake ice is well suited to food displays, salad bars, seafood and produce presentation, smoothies, frozen beverages, and healthcare applications because its small pieces can conform around products and help hold them in place. The D420 features an insulated front-opening door, side grips, a polyurethane Arctic Blue liner, and DuraTech exterior construction. CALL 877-699-9561 FOR SPECIAL PROMOTION

Key Features:

• Manitowoc RFP0620A modular flake ice maker with D420 storage bin
• Up to 730 lb of flake ice production per 24 hours under the listed rating condition
• D420 storage bin provides 383 lb of ice capacity
• 22 inch wide modular configuration
• Air-cooled, self-contained condenser
• 1 HP compressor
• 13.5 amp minimum circuit ampacity
• 115V, 60Hz, single-phase electrical service
• R290 refrigerant
• Ice maker head dimensions: 22 inch W × 23.63 inch D × 26 inch H
• D420 bin dimensions: 22 inch W × 34 inch D × 50 inch H
• Overall configuration: approximately 22 inch W × 34 inch D × 76 inch H
• High-load maintenance-free stainless steel bearings
• Heavy-duty stainless steel cabinet
• Flake ice consists of small, hard pieces suitable for display and cooling applications
• D420 provides 12.9 cubic feet of storage volume
• D420 features a polyurethane Arctic Blue bin liner
• D420 includes an insulated front-opening door with side grips
• Self-latching bin door stays open during ice retrieval
• DuraTech exterior is designed for corrosion and smudge resistance
• Includes an NSF-approved sanitary ice scoop
• D420 storage bin is NSF listed
• Ice maker is ETL and ETL Sanitation listed
• Designed for top-mounted installation
• Suitable for compatible commercial ice storage applications

Used For:

• Restaurants and commercial kitchens
• Salad bars and food displays
• Seafood displays and merchandising
• Produce displays and grocery applications
• Smoothie bars and frozen beverage operations
• Catering and banquet foodservice
• Hotels and hospitality facilities
• Healthcare and cold therapy applications
• Commercial food presentation and cooling
• High-volume foodservice operations requiring flake ice production and storage
