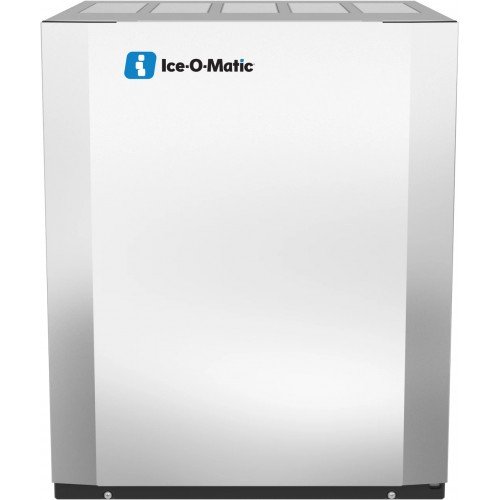

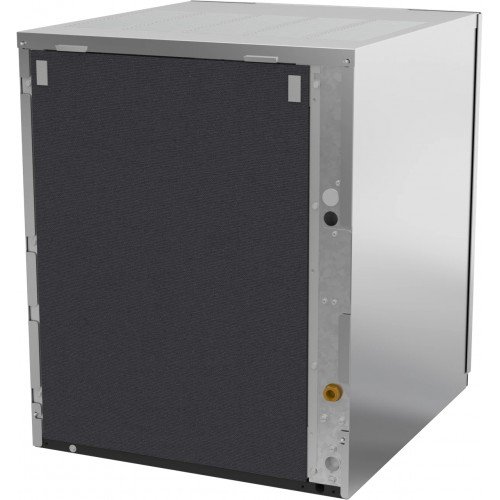

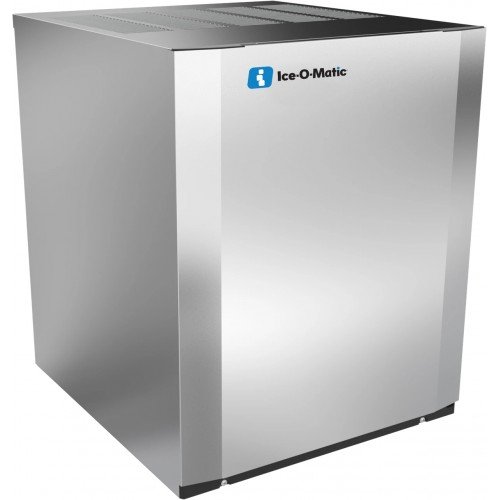

Ice-O-Matic CIM0826HA90 Elevation Series Modular Half Cube Ice Maker

Ice-O-Matic CIM0826HA90 22.25 inch Air-Cooled 900 lb Half Cube Ice Maker

The Ice-O-Matic CIM0826HA90 Elevation Series modular ice maker is designed for commercial operations requiring high-volume half cube ice production in a compact 22.25 inch wide cabinet. Under manufacturer rating conditions of 70°F air and 50°F water, it produces up to 900 lb of ice in 24 hours, with 695 lb at 90°F air and 70°F water. The air-cooled, self-contained unit operates on 208-230V/60/1-phase power and uses R290A refrigerant. Dual top and side exhaust provides installation flexibility, while the front-facing evaporator and dishwasher-safe food-zone components simplify cleaning. Harvest Assist technology, one-touch sanitizing and descaling controls, and a digital control system support routine operation and service. A compatible ice bin or dispenser is required and sold separately. CALL 877-699-9561 FOR SPECIAL PROMOTION

Key Features:

• Produces up to 900 lb of half cube ice per 24 hours at 70°F air and 50°F water
• Produces up to 695 lb per 24 hours at 90°F air and 70°F water
• 22.25 inch W × 24.25 inch D × 26.9 inch H
• Air-cooled, self-contained condenser
• Half cube ice measuring 3/8 inch × 7/8 inch × 7/8 inch
• 208-230V/60/1-phase electrical configuration
• 12.3 A minimum circuit ampacity
• 20 A maximum breaker size
• R290A refrigerant
• 3.7 kWh per 100 lb at 70°F air and 50°F water
• 5.16 kWh per 100 lb at 90°F air and 70°F water
• Dual exhaust discharges air through the top and side

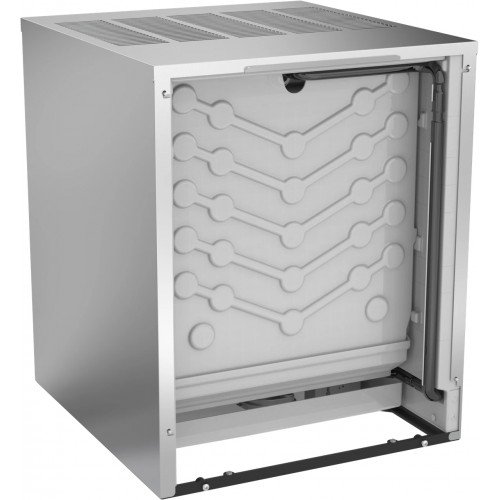

• Front-facing evaporator for accessible cleaning
• Dishwasher-safe food-zone components rated up to 180°F
• Harvest Assist technology supports consistent ice production
• One-touch sanitizing and descaling controls
• LED status display
• Universal Smart Harness control system with digital diagnostics
• Electroless nickel-plated evaporator plates
• Corrosion-resistant, fingerprint-resistant aluminum construction
• Built-in antimicrobial protection
• BPA-free food-zone components
• Modular design for installation on a compatible ice bin or dispenser
• NSF, cULus, and CE listed
• Compatible ice bin or dispenser sold separately

Used For:

• Restaurants and commercial kitchens
• Hotels and hospitality operations
• Bars and beverage service
• Cafeterias and institutional foodservice
• Catering and banquet facilities
• Convenience stores and beverage operations
• High-volume commercial foodservice applications
• Operations requiring substantial half cube ice production
• Ice storage and dispensing systems using compatible bins or dispensers
